Credit: X-ray (NASA/CXC/IfA/C. Ma et al.);Optical (NASA/STScI/IfA/C. Ma et al.)
Press Image and Caption
Labeled X-ray & Optical Image of MACSJ0717.5+3745
Credit: X-ray (NASA/CXC/IfA/C. Ma et al.);
Optical (NASA/STScI/IfA/C. Ma et al.)
View Animation
A labeled version of the MACSJ0717 image shows the galaxies in the four different clusters involved in the collision, plus the direction of motion for the three fastest moving clusters. The length of the arrow shows the approximate speed in a direction perpendicular to the line of sight. Note that the direction of motion of the clusters is roughly parallel to the direction of the filament. Data from Keck Observatory was used to derive the speed of the clusters along the line of sight, allowing the three-dimensional geometry and dynamics of MACSJ0717 to be derived.
A Larger Scale Chandra View of MACSJ0717
Credit: X-ray (NASA/CXC/IfA/C. Ma et al.)
This composite image shows the massive galaxy cluster MACSJ0717.5+3745 (MACSJ0717, for short), where four separate galaxy clusters have been involved in a collision, the first time such a phenomenon has been documented.
Labeled X-ray & Optical Image of MACSJ0717.5+3745Credit: X-ray (NASA/CXC/IfA/C. Ma et al.);
Optical (NASA/STScI/IfA/C. Ma et al.)
View Animation
A labeled version of the MACSJ0717 image shows the galaxies in the four different clusters involved in the collision, plus the direction of motion for the three fastest moving clusters. The length of the arrow shows the approximate speed in a direction perpendicular to the line of sight. Note that the direction of motion of the clusters is roughly parallel to the direction of the filament. Data from Keck Observatory was used to derive the speed of the clusters along the line of sight, allowing the three-dimensional geometry and dynamics of MACSJ0717 to be derived.
A Larger Scale Chandra View of MACSJ0717Credit: X-ray (NASA/CXC/IfA/C. Ma et al.)

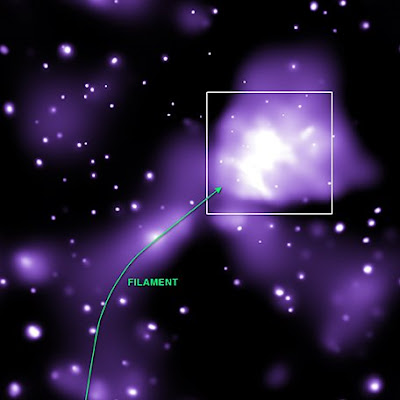

This Chandra image shows a larger scale view of the galaxy cluster MACSJ0717, where the white box shows the field-of-view of the Chandra/HST composite image. The green line shows the approximate position of the large-scale filament leading into MACSJ0717, based on analysis of the positions of galaxies using optical data (not shown here). Material flows along the filament into MACSJ0717. Faint X-ray emission is seen along the filament, showing that it contains hot gas as well as galaxies.
The most crowded collision of galaxy clusters has been identified by combining information from three different telescopes. This result gives scientists a chance to learn what happens when some of the largest objects in the Universe go at each other in a cosmic free-for-all.
Using data from NASA's Chandra X-ray Observatory, Hubble Space Telescope and the Keck Observatory on Mauna Kea, Hawaii, astronomers were able to determine the three-dimensional geometry and motion in the system MACSJ0717.5+3745 (or MACSJ0717 for short) located about 5.4 billion light years from Earth.
The researchers found that four separate galaxy clusters are involved in a triple merger, the first time such a phenomenon has been documented. Galaxy clusters are the largest objects bound by gravity in the Universe.
In MACSJ0717, a 13-million-light-year-long stream of galaxies, gas and dark matter - known as a filament - is pouring into a region already full of matter. Like a freeway of cars emptying into a full parking lot, this flow of galaxies has caused one collision after another.
"In addition to this enormous pileup, MACSJ0717 is also remarkable because of its temperature," said Cheng-Jiun Ma of the University of Hawaii and lead author of the study. "Since each of these collisions releases energy in the form of heat, MACS0717 has one of the highest temperatures ever seen in such a system."
While the filament leading into MACJ0717 had been previously discovered, these results show for the first time that it was the source of this galactic pummeling. The evidence is two-fold. First, by comparing the position of the gas and clusters of galaxies, the researchers tracked the direction of clusters' motions, which matched the orientation of the filament in most cases. Secondly, the largest hot region in MACSJ0717 is where the filament intersects the cluster, suggesting ongoing impacts.
MACSJ0717 shows how giant galaxy clusters interact with their environment on scales of many millions of light years," said team member Harald Ebeling, also from University of Hawaii. "This is a wonderful system for studying how clusters grow as material falls into them along filaments."
Computer simulations show that the most massive galaxy clusters should grow in regions where large-scale filaments of intergalactic gas, galaxies, and dark matter intersect, and material falls inward along the filaments.
"It's exciting that the data we get from MACSJ0717 appear to beautifully match the scenario depicted in the simulations," said Ma.
Multiwavelength data were crucial for this work. The optical data from Hubble and Keck give information about the motion and density of galaxies along the line of sight, but not about their course perpendicular to that direction. By combining the X-ray and optical data, scientists were able to determine the three-dimensional geometry and motion in the system.
In the future, Ma and his team hope to use even deeper X-ray data to measure the temperature of gas over the full 13-million-light-year extent of the filament. Much remains to be learned about the properties of hot gas in filaments and whether its infall along these structures can significantly heat the gas in clusters over large scales.
"This is the most spectacular and most disturbed cluster I have ever seen," says Ma, "and we think that we can learn a whole lot more from it about how structure in our Universe grows and evolves."
The paper describing these results appeared in the March 10th issue of the Astrophysical Journal Letters. NASA's Marshall Space Flight Center in Huntsville, Ala., manages the Chandra program for NASA's Science Mission Directorate in Washington. The Smithsonian Astrophysical Observatory controls Chandra's science and flight operations from Cambridge, Mass.
Using data from NASA's Chandra X-ray Observatory, Hubble Space Telescope and the Keck Observatory on Mauna Kea, Hawaii, astronomers were able to determine the three-dimensional geometry and motion in the system MACSJ0717.5+3745 (or MACSJ0717 for short) located about 5.4 billion light years from Earth.
The researchers found that four separate galaxy clusters are involved in a triple merger, the first time such a phenomenon has been documented. Galaxy clusters are the largest objects bound by gravity in the Universe.
In MACSJ0717, a 13-million-light-year-long stream of galaxies, gas and dark matter - known as a filament - is pouring into a region already full of matter. Like a freeway of cars emptying into a full parking lot, this flow of galaxies has caused one collision after another.
"In addition to this enormous pileup, MACSJ0717 is also remarkable because of its temperature," said Cheng-Jiun Ma of the University of Hawaii and lead author of the study. "Since each of these collisions releases energy in the form of heat, MACS0717 has one of the highest temperatures ever seen in such a system."
While the filament leading into MACJ0717 had been previously discovered, these results show for the first time that it was the source of this galactic pummeling. The evidence is two-fold. First, by comparing the position of the gas and clusters of galaxies, the researchers tracked the direction of clusters' motions, which matched the orientation of the filament in most cases. Secondly, the largest hot region in MACSJ0717 is where the filament intersects the cluster, suggesting ongoing impacts.
MACSJ0717 shows how giant galaxy clusters interact with their environment on scales of many millions of light years," said team member Harald Ebeling, also from University of Hawaii. "This is a wonderful system for studying how clusters grow as material falls into them along filaments."
Computer simulations show that the most massive galaxy clusters should grow in regions where large-scale filaments of intergalactic gas, galaxies, and dark matter intersect, and material falls inward along the filaments.
"It's exciting that the data we get from MACSJ0717 appear to beautifully match the scenario depicted in the simulations," said Ma.
Multiwavelength data were crucial for this work. The optical data from Hubble and Keck give information about the motion and density of galaxies along the line of sight, but not about their course perpendicular to that direction. By combining the X-ray and optical data, scientists were able to determine the three-dimensional geometry and motion in the system.
In the future, Ma and his team hope to use even deeper X-ray data to measure the temperature of gas over the full 13-million-light-year extent of the filament. Much remains to be learned about the properties of hot gas in filaments and whether its infall along these structures can significantly heat the gas in clusters over large scales.
"This is the most spectacular and most disturbed cluster I have ever seen," says Ma, "and we think that we can learn a whole lot more from it about how structure in our Universe grows and evolves."
The paper describing these results appeared in the March 10th issue of the Astrophysical Journal Letters. NASA's Marshall Space Flight Center in Huntsville, Ala., manages the Chandra program for NASA's Science Mission Directorate in Washington. The Smithsonian Astrophysical Observatory controls Chandra's science and flight operations from Cambridge, Mass.
Media contacts:
Kimberly Newton
Marshall Space Flight Center, Huntsville, Ala.
256-544-0371
kimberly.d.newton@nasa.gov
Megan Watzke
Chandra X-ray Center, Cambridge, Mass.
617-496-7998
cxcpress@cfa.harvard.edu
Additional information and images are available at:
http://chandra.harvard.edu/ and http://chandra.nasa.gov
Fast Facts for MACSJ0717.5+3745:
Category: Groups & Clusters of Galaxies
Coordinates: (J2000) RA 07h 17m 31.00s | Dec +37° 45' 39.60
Constellation: Aurigae
Observation Date: January 10, 2003
Observation Time: 16 hours 40 minutes
Obs. ID: 4200
Color Code: X-ray (Blue, Violet); Optical (Cyan, Yellow)
Instrument: ACIS
References: Ma C. et al 2009
Distance Estimate: About 5.4 billion light years
